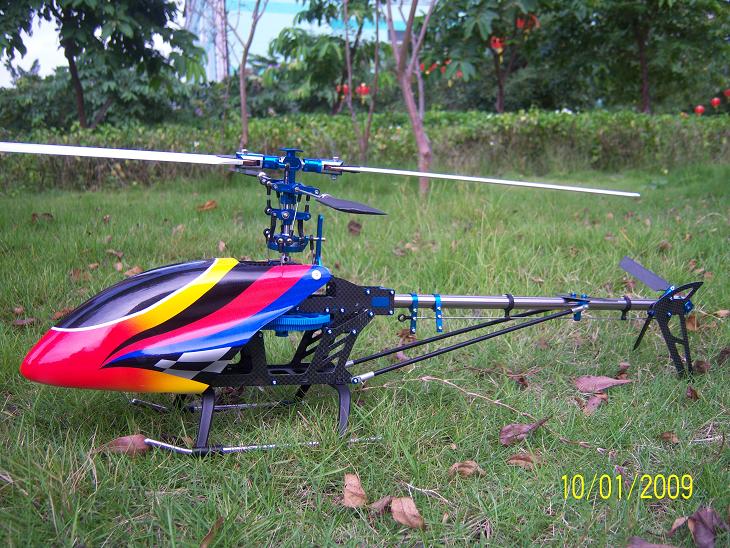

Metal Carbon 450V2-K1 SE Kit Radio Control 3D Helicopter

Style: Radio Control Toy Place of Origin: Guangdong China (Mainland) Brand Name: FMT Radio Control Style: RC Model Power: Battery Type: Helicopter Model Number: 450V2-K1 Material: Metal carbon Scale: 450 COLOR: according to the picture brand: feichao
Unit Type: set Package Weight: 0.01kg Package Size: 42cm x 18cm x 11cm

Specification:

Length:660mm
Height:230mm
Main Blade Length:325mm
Main Rotor Diameter:700mm
Tail Rotor Diameter:150mm
Motor Pinion Gear:12T/13T
Main Drive Gear:150T
Autorotation Tail Drive Gear:106T
Tail Drive Gear:25T
Drive Gear Ratio:1:12.5:4.24/1:11.5:4.24
Weight(w/omain blade):450g
Flying Weight:Approx.730~760g

Instructions:

During hard 3D flight, its actions are very quick and precision.
V2 is Combined with high torque brushless motor for great power.

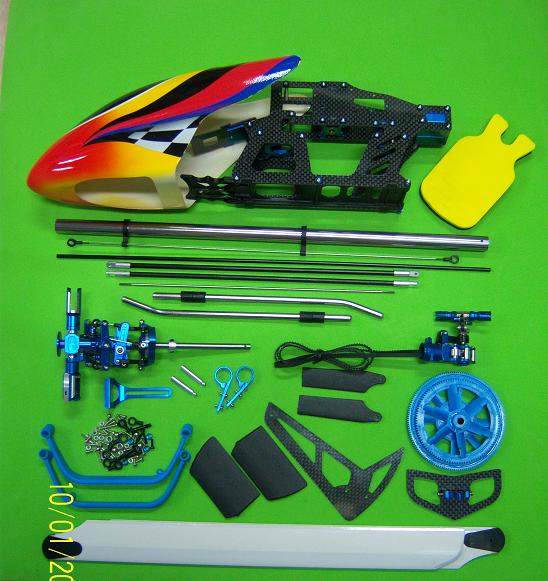

This kit is for the flyers who want uncompromised performance and quality. This SE arrived with 80% pre-assembled.

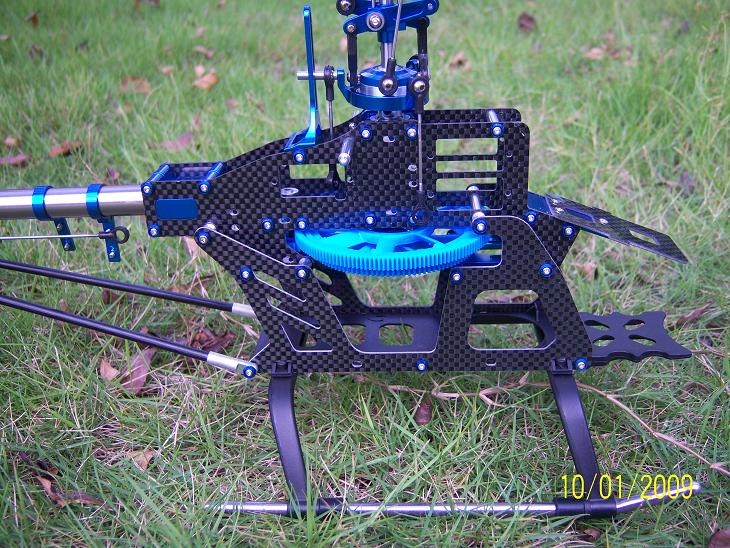

New CNC carbon frame only 1mm, improve the rigidity and perfect for 3D flying.
CCPM version, new aluminum parts for prompt, precision actions.
New battery mounting plate connects to main frame. It makes the center of gravity closed to rotor blade, and can adjust the center of gravity according to the weight of battery, it reduces the correction when the heli rolling.

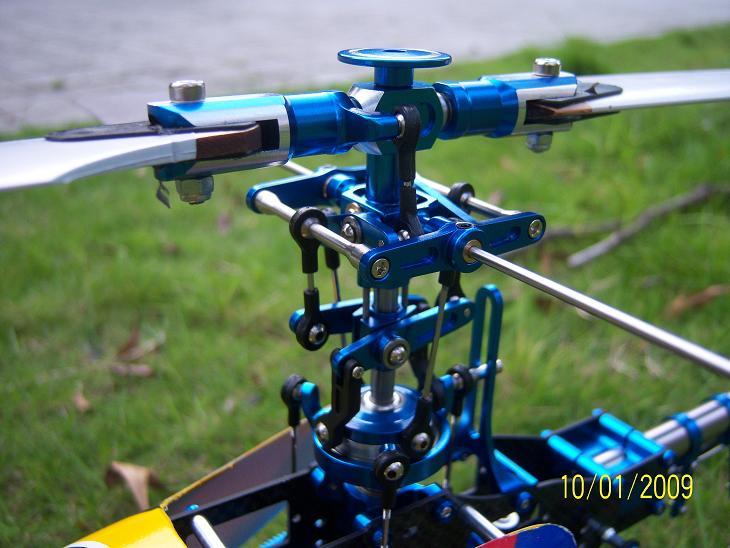

Rigid CNC aluminum rotor head for precision and smooth movements.
Using new Main rotor holder with thrust bearing and 4mm Feathering shaft, features smooth rotation and stability under high rotation speed.
Using Ball and Hiller two systems mixing control. Through simple structure of Ball control system, power-saving of Hiller system and CCPM control, can simultaneously control 3 servo for AILE, EVLE, PIT 3 actions. This CCPM control system is great for 3D flying control and extending life cycle of servos.
New cg amended tail blades feature streamlined and quick, make the gyro more efficient.
New tail rotor control set with dual bearing, features CNC control piece and smooth structure design, get smooth pitch travel.
Providing flybar weight- When normal flying, you can add the weights on flybar paddles for stable flight. When aerobatic flying, you don't need to add the weight, but you can see the flexibility of 3D actions.
CNC tail pulley assembly and tail holder are using high rigid aluminum alloy, features wear resistant and falling resistance.
New gear ratio(4.24:1), suitable for the motor with higher KV, provide more safty.
Use Aluminum alloy drive pulley and tail drive pulley, high regid and wear resistance. It is efficient to reduce the rotation loss and makes more smooth.
Using new high strength ball links and stainless steel linkage balls on the whole unit, feature wear resistance, anti-oxidization.
Tail rotor hub made of stainless steel, very rigid.
Use 35pcs precision bearing.
Great stable and sensitive mixing lever design! Can disply the great stability and precision for 3D flight.
